#include <stddef.h>
#include <compiler.h>
#include <tee_api_defines.h>
#include <tee_api_types.h>
#include <trace.h>

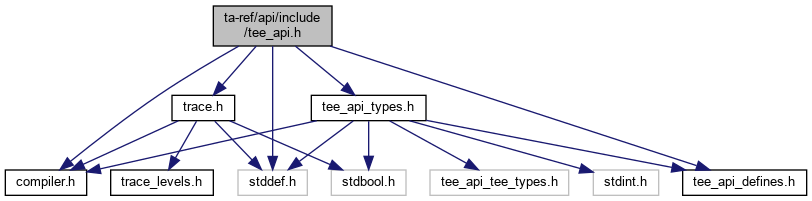

Include dependency graph for tee_api.h:

Functions
TEE_Result	TEE_GetPropertyAsString (TEE_PropSetHandle propsetOrEnumerator, const char name, char valueBuffer, uint32_t *valueBufferLen)

TEE_Result	TEE_GetPropertyAsBool (TEE_PropSetHandle propsetOrEnumerator, const char name, bool value)

TEE_Result	TEE_GetPropertyAsU32 (TEE_PropSetHandle propsetOrEnumerator, const char name, uint32_t value)

TEE_Result	TEE_GetPropertyAsBinaryBlock (TEE_PropSetHandle propsetOrEnumerator, const char name, void valueBuffer, uint32_t *valueBufferLen)

TEE_Result	TEE_GetPropertyAsUUID (TEE_PropSetHandle propsetOrEnumerator, const char name, TEE_UUID value)

TEE_Result	TEE_GetPropertyAsIdentity (TEE_PropSetHandle propsetOrEnumerator, const char name, TEE_Identity value)

TEE_Result	TEE_AllocatePropertyEnumerator (TEE_PropSetHandle *enumerator)

void	TEE_FreePropertyEnumerator (TEE_PropSetHandle enumerator)

void	TEE_StartPropertyEnumerator (TEE_PropSetHandle enumerator, TEE_PropSetHandle propSet)

void	TEE_ResetPropertyEnumerator (TEE_PropSetHandle enumerator)

TEE_Result	TEE_GetPropertyName (TEE_PropSetHandle enumerator, void nameBuffer, uint32_t nameBufferLen)

TEE_Result	TEE_GetNextProperty (TEE_PropSetHandle enumerator)

void	TEE_Panic (TEE_Result panicCode)

TEE_Result	TEE_OpenTASession (const TEE_UUID destination, uint32_t cancellationRequestTimeout, uint32_t paramTypes, TEE_Param params[TEE_NUM_PARAMS], TEE_TASessionHandle session, uint32_t *returnOrigin)

void	TEE_CloseTASession (TEE_TASessionHandle session)

TEE_Result	TEE_InvokeTACommand (TEE_TASessionHandle session, uint32_t cancellationRequestTimeout, uint32_t commandID, uint32_t paramTypes, TEE_Param params[TEE_NUM_PARAMS], uint32_t *returnOrigin)

bool	TEE_GetCancellationFlag (void)

bool	TEE_UnmaskCancellation (void)

bool	TEE_MaskCancellation (void)

TEE_Result	TEE_CheckMemoryAccessRights (uint32_t accessFlags, void *buffer, uint32_t size)

void	TEE_SetInstanceData (const void *instanceData)

const void *	TEE_GetInstanceData (void)

void *	TEE_Malloc (uint32_t size, uint32_t hint)

void *	TEE_Realloc (void *buffer, uint32_t newSize)

void	TEE_Free (void *buffer)

void *	TEE_MemMove (void dest, const void src, uint32_t size)

int32_t	TEE_MemCompare (const void buffer1, const void buffer2, uint32_t size)

void *	TEE_MemFill (void *buff, uint32_t x, uint32_t size)

void	TEE_GetObjectInfo (TEE_ObjectHandle object, TEE_ObjectInfo *objectInfo)

TEE_Result	TEE_GetObjectInfo1 (TEE_ObjectHandle object, TEE_ObjectInfo *objectInfo)
	Core Functions, Secure Storage Functions (data is isolated for each TA) More...

void	TEE_RestrictObjectUsage (TEE_ObjectHandle object, uint32_t objectUsage)

TEE_Result	TEE_RestrictObjectUsage1 (TEE_ObjectHandle object, uint32_t objectUsage)

TEE_Result	TEE_GetObjectBufferAttribute (TEE_ObjectHandle object, uint32_t attributeID, void buffer, uint32_t size)

TEE_Result	TEE_GetObjectValueAttribute (TEE_ObjectHandle object, uint32_t attributeID, uint32_t a, uint32_t b)

void	TEE_CloseObject (TEE_ObjectHandle object)
	Core Functions, Secure Storage Functions (data is isolated for each TA) More...

TEE_Result	TEE_AllocateTransientObject (TEE_ObjectType objectType, uint32_t maxKeySize, TEE_ObjectHandle *object)
	Crypto, Asymmetric key Verification Functions. More...

void	TEE_FreeTransientObject (TEE_ObjectHandle object)
	Crypto, Asymmetric key Verification Functions. More...

void	TEE_ResetTransientObject (TEE_ObjectHandle object)

TEE_Result	TEE_PopulateTransientObject (TEE_ObjectHandle object, const TEE_Attribute *attrs, uint32_t attrCount)

void	TEE_InitRefAttribute (TEE_Attribute attr, uint32_t attributeID, const void buffer, uint32_t length)
	Crypto, Asymmetric key Verification Functions. More...

void	TEE_InitValueAttribute (TEE_Attribute *attr, uint32_t attributeID, uint32_t a, uint32_t b)
	Crypto, Asymmetric key Verification Functions. More...

void	TEE_CopyObjectAttributes (TEE_ObjectHandle destObject, TEE_ObjectHandle srcObject)

TEE_Result	TEE_CopyObjectAttributes1 (TEE_ObjectHandle destObject, TEE_ObjectHandle srcObject)

TEE_Result	TEE_GenerateKey (TEE_ObjectHandle object, uint32_t keySize, const TEE_Attribute *params, uint32_t paramCount)
	Crypto, Asymmetric key Verification Functions. More...

TEE_Result	TEE_OpenPersistentObject (uint32_t storageID, const void objectID, uint32_t objectIDLen, uint32_t flags, TEE_ObjectHandle object)
	Core Functions, Secure Storage Functions (data is isolated for each TA) More...

TEE_Result	TEE_CreatePersistentObject (uint32_t storageID, const void objectID, uint32_t objectIDLen, uint32_t flags, TEE_ObjectHandle attributes, const void initialData, uint32_t initialDataLen, TEE_ObjectHandle *object)
	Core Functions, Secure Storage Functions (data is isolated for each TA) More...

void	TEE_CloseAndDeletePersistentObject (TEE_ObjectHandle object)

TEE_Result	TEE_CloseAndDeletePersistentObject1 (TEE_ObjectHandle object)

TEE_Result	TEE_RenamePersistentObject (TEE_ObjectHandle object, const void *newObjectID, uint32_t newObjectIDLen)

TEE_Result	TEE_AllocatePersistentObjectEnumerator (TEE_ObjectEnumHandle *objectEnumerator)

void	TEE_FreePersistentObjectEnumerator (TEE_ObjectEnumHandle objectEnumerator)

void	TEE_ResetPersistentObjectEnumerator (TEE_ObjectEnumHandle objectEnumerator)

TEE_Result	TEE_StartPersistentObjectEnumerator (TEE_ObjectEnumHandle objectEnumerator, uint32_t storageID)

TEE_Result	TEE_GetNextPersistentObject (TEE_ObjectEnumHandle objectEnumerator, TEE_ObjectInfo objectInfo, void objectID, uint32_t *objectIDLen)

TEE_Result	TEE_ReadObjectData (TEE_ObjectHandle object, void buffer, uint32_t size, uint32_t count)
	Core Functions, Secure Storage Functions (data is isolated for each TA) More...

TEE_Result	TEE_WriteObjectData (TEE_ObjectHandle object, const void *buffer, uint32_t size)
	Core Functions, Secure Storage Functions (data is isolated for each TA) More...

TEE_Result	TEE_TruncateObjectData (TEE_ObjectHandle object, uint32_t size)

TEE_Result	TEE_SeekObjectData (TEE_ObjectHandle object, int32_t offset, TEE_Whence whence)

TEE_Result	TEE_AllocateOperation (TEE_OperationHandle *operation, uint32_t algorithm, uint32_t mode, uint32_t maxKeySize)
	Crypto, for all Crypto Functions. More...

void	TEE_FreeOperation (TEE_OperationHandle operation)
	Crypto, for all Crypto Functions. More...

void	TEE_GetOperationInfo (TEE_OperationHandle operation, TEE_OperationInfo *operationInfo)

TEE_Result	TEE_GetOperationInfoMultiple (TEE_OperationHandle operation, TEE_OperationInfoMultiple operationInfoMultiple, uint32_t operationSize)

void	TEE_ResetOperation (TEE_OperationHandle operation)

TEE_Result	TEE_SetOperationKey (TEE_OperationHandle operation, TEE_ObjectHandle key)
	Crypto, Authenticated Encryption with Symmetric key Verification Functions. More...

TEE_Result	TEE_SetOperationKey2 (TEE_OperationHandle operation, TEE_ObjectHandle key1, TEE_ObjectHandle key2)

void	TEE_CopyOperation (TEE_OperationHandle dstOperation, TEE_OperationHandle srcOperation)

TEE_Result	TEE_IsAlgorithmSupported (uint32_t algId, uint32_t element)

void	TEE_DigestUpdate (TEE_OperationHandle operation, const void *chunk, uint32_t chunkSize)
	Crypto, Message Digest Functions. More...

TEE_Result	TEE_DigestDoFinal (TEE_OperationHandle operation, const void chunk, uint32_t chunkLen, void hash, uint32_t *hashLen)

void	TEE_CipherInit (TEE_OperationHandle operation, const void *IV, uint32_t IVLen)
	Crypto, Authenticated Encryption with Symmetric key Verification Functions. More...

TEE_Result	TEE_CipherUpdate (TEE_OperationHandle operation, const void srcData, uint32_t srcLen, void destData, uint32_t *destLen)
	Crypto, Authenticated Encryption with Symmetric key Verification Functions. More...

TEE_Result	TEE_CipherDoFinal (TEE_OperationHandle operation, const void srcData, uint32_t srcLen, void destData, uint32_t *destLen)

void	TEE_MACInit (TEE_OperationHandle operation, const void *IV, uint32_t IVLen)

void	TEE_MACUpdate (TEE_OperationHandle operation, const void *chunk, uint32_t chunkSize)

TEE_Result	TEE_MACComputeFinal (TEE_OperationHandle operation, const void message, uint32_t messageLen, void mac, uint32_t *macLen)

TEE_Result	TEE_MACCompareFinal (TEE_OperationHandle operation, const void message, uint32_t messageLen, const void mac, uint32_t macLen)

TEE_Result	TEE_AEInit (TEE_OperationHandle operation, const void *nonce, uint32_t nonceLen, uint32_t tagLen, uint32_t AADLen, uint32_t payloadLen)
	Crypto, Authenticated Encryption with Symmetric key Verification Functions. More...

void	TEE_AEUpdateAAD (TEE_OperationHandle operation, const void *AADdata, uint32_t AADdataLen)
	Crypto, Authenticated Encryption with Symmetric key Verification Functions. More...

TEE_Result	TEE_AEUpdate (TEE_OperationHandle operation, const void srcData, uint32_t srcLen, void destData, uint32_t *destLen)
	Crypto, Authenticated Encryption with Symmetric key Verification Functions. More...

TEE_Result	TEE_AEEncryptFinal (TEE_OperationHandle operation, const void srcData, uint32_t srcLen, void destData, uint32_t destLen, void tag, uint32_t *tagLen)
	Crypto, Authenticated Encryption with Symmetric key Verification Functions. More...

TEE_Result	TEE_AEDecryptFinal (TEE_OperationHandle operation, const void srcData, uint32_t srcLen, void destData, uint32_t destLen, void tag, uint32_t tagLen)
	Crypto, Authenticated Encryption with Symmetric key Verification Functions. More...

TEE_Result	TEE_AsymmetricEncrypt (TEE_OperationHandle operation, const TEE_Attribute params, uint32_t paramCount, const void srcData, uint32_t srcLen, void destData, uint32_t destLen)

TEE_Result	TEE_AsymmetricDecrypt (TEE_OperationHandle operation, const TEE_Attribute params, uint32_t paramCount, const void srcData, uint32_t srcLen, void destData, uint32_t destLen)

TEE_Result	TEE_AsymmetricSignDigest (TEE_OperationHandle operation, const TEE_Attribute params, uint32_t paramCount, const void digest, uint32_t digestLen, void signature, uint32_t signatureLen)
	Crypto, Asymmetric key Verification Functions. More...

TEE_Result	TEE_AsymmetricVerifyDigest (TEE_OperationHandle operation, const TEE_Attribute params, uint32_t paramCount, const void digest, uint32_t digestLen, const void *signature, uint32_t signatureLen)
	Crypto, Asymmetric key Verification Functions. More...

void	TEE_DeriveKey (TEE_OperationHandle operation, const TEE_Attribute *params, uint32_t paramCount, TEE_ObjectHandle derivedKey)

void	TEE_GenerateRandom (void *randomBuffer, uint32_t randomBufferLen)
	Crypto, common. More...

void	TEE_GetSystemTime (TEE_Time *time)
	Core Functions, Time Functions. More...

TEE_Result	TEE_Wait (uint32_t timeout)

TEE_Result	TEE_GetTAPersistentTime (TEE_Time *time)

TEE_Result	TEE_SetTAPersistentTime (const TEE_Time *time)

void	TEE_GetREETime (TEE_Time *time)
	Core Functions, Time Functions. More...

uint32_t	TEE_BigIntFMMSizeInU32 (uint32_t modulusSizeInBits)

uint32_t	TEE_BigIntFMMContextSizeInU32 (uint32_t modulusSizeInBits)

void	TEE_BigIntInit (TEE_BigInt *bigInt, uint32_t len)

void	TEE_BigIntInitFMMContext (TEE_BigIntFMMContext context, uint32_t len, const TEE_BigInt modulus)

void	TEE_BigIntInitFMM (TEE_BigIntFMM *bigIntFMM, uint32_t len)

TEE_Result	TEE_BigIntConvertFromOctetString (TEE_BigInt dest, const uint8_t buffer, uint32_t bufferLen, int32_t sign)

TEE_Result	TEE_BigIntConvertToOctetString (uint8_t buffer, uint32_t bufferLen, const TEE_BigInt *bigInt)

void	TEE_BigIntConvertFromS32 (TEE_BigInt *dest, int32_t shortVal)

TEE_Result	TEE_BigIntConvertToS32 (int32_t dest, const TEE_BigInt src)

int32_t	TEE_BigIntCmp (const TEE_BigInt op1, const TEE_BigInt op2)

int32_t	TEE_BigIntCmpS32 (const TEE_BigInt *op, int32_t shortVal)

void	TEE_BigIntShiftRight (TEE_BigInt dest, const TEE_BigInt op, size_t bits)

bool	TEE_BigIntGetBit (const TEE_BigInt *src, uint32_t bitIndex)

uint32_t	TEE_BigIntGetBitCount (const TEE_BigInt *src)

void	TEE_BigIntAdd (TEE_BigInt dest, const TEE_BigInt op1, const TEE_BigInt *op2)

void	TEE_BigIntSub (TEE_BigInt dest, const TEE_BigInt op1, const TEE_BigInt *op2)

void	TEE_BigIntNeg (TEE_BigInt dest, const TEE_BigInt op)

void	TEE_BigIntMul (TEE_BigInt dest, const TEE_BigInt op1, const TEE_BigInt *op2)

void	TEE_BigIntSquare (TEE_BigInt dest, const TEE_BigInt op)

void	TEE_BigIntDiv (TEE_BigInt dest_q, TEE_BigInt dest_r, const TEE_BigInt op1, const TEE_BigInt op2)

void	TEE_BigIntMod (TEE_BigInt dest, const TEE_BigInt op, const TEE_BigInt *n)

void	TEE_BigIntAddMod (TEE_BigInt dest, const TEE_BigInt op1, const TEE_BigInt op2, const TEE_BigInt n)

void	TEE_BigIntSubMod (TEE_BigInt dest, const TEE_BigInt op1, const TEE_BigInt op2, const TEE_BigInt n)

void	TEE_BigIntMulMod (TEE_BigInt dest, const TEE_BigInt op1, const TEE_BigInt op2, const TEE_BigInt n)

void	TEE_BigIntSquareMod (TEE_BigInt dest, const TEE_BigInt op, const TEE_BigInt *n)

void	TEE_BigIntInvMod (TEE_BigInt dest, const TEE_BigInt op, const TEE_BigInt *n)

bool	TEE_BigIntRelativePrime (const TEE_BigInt op1, const TEE_BigInt op2)

void	TEE_BigIntComputeExtendedGcd (TEE_BigInt gcd, TEE_BigInt u, TEE_BigInt v, const TEE_BigInt op1, const TEE_BigInt *op2)

int32_t	TEE_BigIntIsProbablePrime (const TEE_BigInt *op, uint32_t confidenceLevel)

void	TEE_BigIntConvertToFMM (TEE_BigIntFMM dest, const TEE_BigInt src, const TEE_BigInt n, const TEE_BigIntFMMContext context)

void	TEE_BigIntConvertFromFMM (TEE_BigInt dest, const TEE_BigIntFMM src, const TEE_BigInt n, const TEE_BigIntFMMContext context)

void	TEE_BigIntFMMConvertToBigInt (TEE_BigInt dest, const TEE_BigIntFMM src, const TEE_BigInt n, const TEE_BigIntFMMContext context)

void	TEE_BigIntComputeFMM (TEE_BigIntFMM dest, const TEE_BigIntFMM op1, const TEE_BigIntFMM op2, const TEE_BigInt n, const TEE_BigIntFMMContext *context)

Function Documentation

◆ TEE_AEDecryptFinal()

TEE_Result TEE_AEDecryptFinal	(	TEE_OperationHandle	operation,
		const void *	srcData,
		uint32_t	srcLen,
		void *	destData,
		uint32_t *	destLen,
		void *	tag,
		uint32_t	tagLen
	)

Crypto, Authenticated Encryption with Symmetric key Verification Functions.

TEE_AEDecryptFinal() - Processes data that has not been processed by previous calls to TEE_AEUpdate as well as data supplied in srcData.

This function completes the AE operation and compares the computed tag with the tag supplied in the parameter tag .The operation handle can be reused or newly initialized.The buffers srcData and destData shall be either completely disjoint or equal in their starting positions.The operation may be in either initial or active state and enters initial state afterwards.

Parameters

operation	Handle of a running AE operation
srcData	Reference to final chunk of input data to be encrypted
srcLen	length of the input data
destData	Output buffer. Can be omitted if the output is to be discarded.
destLen	length of the buffer.
tag	Output buffer filled with the computed tag
tagLen	length of the tag.

Returns: 0 on success.; TEE_ERROR_SHORT_BUFFER If the output buffer is not large enough to contain the output; TEE_ERROR_MAC_INVALID If the computed tag does not match the supplied tag

◆ TEE_AEEncryptFinal()

TEE_Result TEE_AEEncryptFinal	(	TEE_OperationHandle	operation,
		const void *	srcData,
		uint32_t	srcLen,
		void *	destData,
		uint32_t *	destLen,
		void *	tag,
		uint32_t *	tagLen
	)

Crypto, Authenticated Encryption with Symmetric key Verification Functions.

TEE_AEEncryptFinal() - processes data that has not been processed by previous calls to TEE_AEUpdate as well as data supplied in srcData .

TEE_AEEncryptFinal completes the AE operation and computes the tag. The operation handle can be reused or newly initialized. The buffers srcData and destData SHALL be either completely disjoint or equal in their starting positions.The operation may be in either initial or active state and enters initial state afterwards.

Parameters

operation	Handle of a running AE operation
srcData	Reference to final chunk of input data to be encrypted
srcLen	length of the input data
destData	Output buffer. Can be omitted if the output is to be discarded.
destLen	length of the buffer.
tag	Output buffer filled with the computed tag
tagLen	length of the tag.

Returns: 0 on success.; TEE_ERROR_SHORT_BUFFER If the output or tag buffer is not large enoughto contain the output.

◆ TEE_AEInit()

TEE_Result TEE_AEInit	(	TEE_OperationHandle	operation,
		const void *	nonce,
		uint32_t	nonceLen,
		uint32_t	tagLen,
		uint32_t	AADLen,
		uint32_t	payloadLen
	)

Crypto, Authenticated Encryption with Symmetric key Verification Functions.

TEE_AEInit() - Initializes an Authentication Encryption operation.

The operation must be in initial state and remains in the initial state afterwards.

Parameters

operation	A handle on the operation.
nonce	The operation nonce or IV
nonceLen	length of nonce
tagLen	Size in bits of the tag
AADLen	Length in bytes of the AAD
payloadLen	Length in bytes of the payload.

Returns: 0 on success.; TEE_ERROR_NOT_SUPPORTED If the tag length is not supported by the algorithm.

◆ TEE_AEUpdate()

TEE_Result TEE_AEUpdate	(	TEE_OperationHandle	operation,
		const void *	srcData,
		uint32_t	srcLen,
		void *	destData,
		uint32_t *	destLen
	)

Crypto, Authenticated Encryption with Symmetric key Verification Functions.

TEE_AEUpdate() - Accumulates data for an Authentication Encryption operation

This function describes Input data does not have to be a multiple of block size. Subsequent calls to this function are possible. Unless one or more calls of this function have supplied sufficient input data,no output is generated. when using this routine to decrypt the returned data may be corrupt since the integrity check is not performed until all the data has been processed. If this is a concern then only use the TEE_AEDecryptFinal routine.

Parameters

operation	Handle of a running AE operation.
srcData	Input data buffer to be encrypted or decrypted
srcLen	length of the input buffer.
destData	Output buffer
destLen	length of the out put buffer.

Returns: 0 on success.; TEE_ERROR_SHORT_BUFFER if the output buffer is not large enough to contain the output.

◆ TEE_AEUpdateAAD()

void TEE_AEUpdateAAD	(	TEE_OperationHandle	operation,
		const void *	AADdata,
		uint32_t	AADdataLen
	)

Crypto, Authenticated Encryption with Symmetric key Verification Functions.

TEE_AEUpdateAAD() - Feeds a new chunk of Additional Authentication Data (AAD) to the AE operation. Subsequent calls to this function are possible.

The TEE_AEUpdateAAD function feeds a new chunk of Additional Authentication Data (AAD) to the AE operation. Subsequent calls to this function are possible.The buffers srcData and destData shall be either completely disjoint or equal in their starting positions.The operation SHALL be in initial state and remains in initial state afterwards.

Parameters

operation	Handle on the AE operation
AADdata	Input buffer containing the chunk of AAD
AADdataLen	length of the chunk of AAD.

◆ TEE_AllocateOperation()

TEE_Result TEE_AllocateOperation	(	TEE_OperationHandle *	operation,
		uint32_t	algorithm,
		uint32_t	mode,
		uint32_t	maxKeySize
	)

Crypto, for all Crypto Functions.

TEE_AllocateOperation() - Allocates a handle for a new cryptographic operation and sets the mode and algorithm type.

If this function does not return with TEE_SUCCESS then there is no valid handle value.Once a cryptographic operation has been created, the implementation shall guarantee that all resources necessary for the operation are allocated and that any operation with a key of at most maxKeySize bits can be performed. For algorithms that take multiple keys, for example the AES XTS algorithm, the maxKeySize parameter specifies the size of the largest key. It is up to the implementation to properly allocate space for multiple keys if the algorithm so requires.

Parameters

operation	reference to generated operation handle.
algorithm	One of the cipher algorithms.
mode	The operation mode.
maxKeySize	Maximum key size in bits for the operation.

Returns: 0 in case of success; TEE_ERROR_OUT_OF_MEMORY If there are not enough resources to allocate the operation.; TEE_ERROR_NOT_SUPPORTED If the mode is not compatible with the algorithm or key size or if the algorithm is not one of the listed algorithms or if maxKeySize is not appropriate for the algorithm.

◆ TEE_AllocatePersistentObjectEnumerator()

TEE_Result TEE_AllocatePersistentObjectEnumerator ( TEE_ObjectEnumHandle * objectEnumerator )

◆ TEE_AllocatePropertyEnumerator()

TEE_Result TEE_AllocatePropertyEnumerator ( TEE_PropSetHandle * enumerator )

◆ TEE_AllocateTransientObject()

TEE_Result TEE_AllocateTransientObject	(	TEE_ObjectType	objectType,
		uint32_t	maxKeySize,
		TEE_ObjectHandle *	object
	)

Crypto, Asymmetric key Verification Functions.

TEE_AllocateTransientObject() - Allocates an uninitialized transient object. Transient objects are used to hold a cryptographic object (key or key-pair).

The value TEE_KEYSIZE_NO_KEY should be used for maxObjectSize for object types that do not require a key so that all the container resources can be pre-allocated. As allocated, the container is uninitialized. It can be initialized by subsequently importing the object material,generating an object, deriving an object, or loading an object from the Trusted Storage.

Parameters

objectType	Type of uninitialized object container to be created
maxKeySize	Key Size of the object.
object	Filled with a handle on the newly created key container.

Returns: 0 on success; TEE_ERROR_OUT_OF_MEMORY If not enough resources are available to allocate the object handle.; TEE_ERROR_NOT_SUPPORTED If the key size is not supported or the object
type is not supported.

◆ TEE_AsymmetricDecrypt()

TEE_Result TEE_AsymmetricDecrypt	(	TEE_OperationHandle	operation,
		const TEE_Attribute *	params,
		uint32_t	paramCount,
		const void *	srcData,
		uint32_t	srcLen,
		void *	destData,
		uint32_t *	destLen
	)

◆ TEE_AsymmetricEncrypt()

TEE_Result TEE_AsymmetricEncrypt	(	TEE_OperationHandle	operation,
		const TEE_Attribute *	params,
		uint32_t	paramCount,
		const void *	srcData,
		uint32_t	srcLen,
		void *	destData,
		uint32_t *	destLen
	)

◆ TEE_AsymmetricSignDigest()

TEE_Result TEE_AsymmetricSignDigest	(	TEE_OperationHandle	operation,
		const TEE_Attribute *	params,
		uint32_t	paramCount,
		const void *	digest,
		uint32_t	digestLen,
		void *	signature,
		uint32_t *	signatureLen
	)

Crypto, Asymmetric key Verification Functions.

TEE_AsymmetricSignDigest() - Signs a message digest within an asymmetric operation.

Parameters

operation	Handle on the operation, which SHALL have been suitably set up with an operation key.
params	Optional operation parameters
paramCount	size of param
digest	Input buffer containing the input message digest
digestLen	length of input buffer.
signature	Output buffer written with the signature of the digest
signatureLen	length of output buffer.

Returns: 0 on sccess; TEE_ERROR_SHORT_BUFFER If the signature buffer is not large enough to hold the result

◆ TEE_AsymmetricVerifyDigest()

TEE_Result TEE_AsymmetricVerifyDigest	(	TEE_OperationHandle	operation,
		const TEE_Attribute *	params,
		uint32_t	paramCount,
		const void *	digest,
		uint32_t	digestLen,
		const void *	signature,
		uint32_t	signatureLen
	)

Crypto, Asymmetric key Verification Functions.

TEE_AsymmetricVerifyDigest() - verifies a message digest signature within an asymmetric operation.

This function describes the message digest signature verify by calling ed25519_verify().

Parameters

operation	Handle on the operation, which SHALL have been suitably set up with an operation key.
params	Optional operation parameters
paramCount	size of param.
digest	Input buffer containing the input message digest
digestLen	length of input buffer.
signature	Output buffer written with the signature of the digest
signatureLen	length of output buffer.

Returns: TEE_SUCCESS on success; TEE_ERROR_SIGNATURE_INVALID if the signature is invalid.

◆ TEE_BigIntAdd()

void TEE_BigIntAdd	(	TEE_BigInt *	dest,
		const TEE_BigInt *	op1,
		const TEE_BigInt *	op2
	)

◆ TEE_BigIntAddMod()

void TEE_BigIntAddMod	(	TEE_BigInt *	dest,
		const TEE_BigInt *	op1,
		const TEE_BigInt *	op2,
		const TEE_BigInt *	n
	)

◆ TEE_BigIntCmp()

int32_t TEE_BigIntCmp	(	const TEE_BigInt *	op1,
		const TEE_BigInt *	op2
	)

◆ TEE_BigIntCmpS32()

int32_t TEE_BigIntCmpS32	(	const TEE_BigInt *	op,
		int32_t	shortVal
	)

◆ TEE_BigIntComputeExtendedGcd()

void TEE_BigIntComputeExtendedGcd	(	TEE_BigInt *	gcd,
		TEE_BigInt *	u,
		TEE_BigInt *	v,
		const TEE_BigInt *	op1,
		const TEE_BigInt *	op2
	)

◆ TEE_BigIntComputeFMM()

void TEE_BigIntComputeFMM	(	TEE_BigIntFMM *	dest,
		const TEE_BigIntFMM *	op1,
		const TEE_BigIntFMM *	op2,
		const TEE_BigInt *	n,
		const TEE_BigIntFMMContext *	context
	)

◆ TEE_BigIntConvertFromFMM()

void TEE_BigIntConvertFromFMM	(	TEE_BigInt *	dest,
		const TEE_BigIntFMM *	src,
		const TEE_BigInt *	n,
		const TEE_BigIntFMMContext *	context
	)

◆ TEE_BigIntConvertFromOctetString()

TEE_Result TEE_BigIntConvertFromOctetString	(	TEE_BigInt *	dest,
		const uint8_t *	buffer,
		uint32_t	bufferLen,
		int32_t	sign
	)

◆ TEE_BigIntConvertFromS32()

void TEE_BigIntConvertFromS32	(	TEE_BigInt *	dest,
		int32_t	shortVal
	)

◆ TEE_BigIntConvertToFMM()

void TEE_BigIntConvertToFMM	(	TEE_BigIntFMM *	dest,
		const TEE_BigInt *	src,
		const TEE_BigInt *	n,
		const TEE_BigIntFMMContext *	context
	)

◆ TEE_BigIntConvertToOctetString()

TEE_Result TEE_BigIntConvertToOctetString	(	uint8_t *	buffer,
		uint32_t *	bufferLen,
		const TEE_BigInt *	bigInt
	)

◆ TEE_BigIntConvertToS32()

TEE_Result TEE_BigIntConvertToS32	(	int32_t *	dest,
		const TEE_BigInt *	src
	)

◆ TEE_BigIntDiv()

void TEE_BigIntDiv	(	TEE_BigInt *	dest_q,
		TEE_BigInt *	dest_r,
		const TEE_BigInt *	op1,
		const TEE_BigInt *	op2
	)

◆ TEE_BigIntFMMContextSizeInU32()

uint32_t TEE_BigIntFMMContextSizeInU32 ( uint32_t modulusSizeInBits )

◆ TEE_BigIntFMMConvertToBigInt()

void TEE_BigIntFMMConvertToBigInt	(	TEE_BigInt *	dest,
		const TEE_BigIntFMM *	src,
		const TEE_BigInt *	n,
		const TEE_BigIntFMMContext *	context
	)

◆ TEE_BigIntFMMSizeInU32()

uint32_t TEE_BigIntFMMSizeInU32 ( uint32_t modulusSizeInBits )

◆ TEE_BigIntGetBit()

bool TEE_BigIntGetBit	(	const TEE_BigInt *	src,
		uint32_t	bitIndex
	)

◆ TEE_BigIntGetBitCount()

uint32_t TEE_BigIntGetBitCount ( const TEE_BigInt * src )

◆ TEE_BigIntInit()

void TEE_BigIntInit	(	TEE_BigInt *	bigInt,
		uint32_t	len
	)

◆ TEE_BigIntInitFMM()

void TEE_BigIntInitFMM	(	TEE_BigIntFMM *	bigIntFMM,
		uint32_t	len
	)

◆ TEE_BigIntInitFMMContext()

void TEE_BigIntInitFMMContext	(	TEE_BigIntFMMContext *	context,
		uint32_t	len,
		const TEE_BigInt *	modulus
	)

◆ TEE_BigIntInvMod()

void TEE_BigIntInvMod	(	TEE_BigInt *	dest,
		const TEE_BigInt *	op,
		const TEE_BigInt *	n
	)

◆ TEE_BigIntIsProbablePrime()

int32_t TEE_BigIntIsProbablePrime	(	const TEE_BigInt *	op,
		uint32_t	confidenceLevel
	)

◆ TEE_BigIntMod()

void TEE_BigIntMod	(	TEE_BigInt *	dest,
		const TEE_BigInt *	op,
		const TEE_BigInt *	n
	)

◆ TEE_BigIntMul()

void TEE_BigIntMul	(	TEE_BigInt *	dest,
		const TEE_BigInt *	op1,
		const TEE_BigInt *	op2
	)

◆ TEE_BigIntMulMod()

void TEE_BigIntMulMod	(	TEE_BigInt *	dest,
		const TEE_BigInt *	op1,
		const TEE_BigInt *	op2,
		const TEE_BigInt *	n
	)

◆ TEE_BigIntNeg()

void TEE_BigIntNeg	(	TEE_BigInt *	dest,
		const TEE_BigInt *	op
	)

◆ TEE_BigIntRelativePrime()

bool TEE_BigIntRelativePrime	(	const TEE_BigInt *	op1,
		const TEE_BigInt *	op2
	)

◆ TEE_BigIntShiftRight()

void TEE_BigIntShiftRight	(	TEE_BigInt *	dest,
		const TEE_BigInt *	op,
		size_t	bits
	)

◆ TEE_BigIntSquare()

void TEE_BigIntSquare	(	TEE_BigInt *	dest,
		const TEE_BigInt *	op
	)

◆ TEE_BigIntSquareMod()

void TEE_BigIntSquareMod	(	TEE_BigInt *	dest,
		const TEE_BigInt *	op,
		const TEE_BigInt *	n
	)

◆ TEE_BigIntSub()

void TEE_BigIntSub	(	TEE_BigInt *	dest,
		const TEE_BigInt *	op1,
		const TEE_BigInt *	op2
	)

◆ TEE_BigIntSubMod()

void TEE_BigIntSubMod	(	TEE_BigInt *	dest,
		const TEE_BigInt *	op1,
		const TEE_BigInt *	op2,
		const TEE_BigInt *	n
	)

◆ TEE_CheckMemoryAccessRights()

TEE_Result TEE_CheckMemoryAccessRights	(	uint32_t	accessFlags,
		void *	buffer,
		uint32_t	size
	)

◆ TEE_CipherDoFinal()

TEE_Result TEE_CipherDoFinal	(	TEE_OperationHandle	operation,
		const void *	srcData,
		uint32_t	srcLen,
		void *	destData,
		uint32_t *	destLen
	)

TEE_CipherDoFinal() - Finalizes the cipher operation, processing data that has not been processed by previous calls to TEE_CipherUpdate as well as data supplied in srcData .

This function describes The operation handle can be reused or re-initialized. The buffers srcData and destData shall be either completely disjoint or equal in their starting positions.The operation SHALL be in active state and is set to initial state afterwards.

Parameters

operation	Handle of a running Cipher operation
srcData	Input data buffer to be encrypted or decrypted
srcLen	length of input buffer
destData	output buffer
destLen	ouput buffer length.

Returns: 0 on success; TEE_ERROR_SHORT_BUFFER If the output buffer is not large enough to contain the output

◆ TEE_CipherInit()

void TEE_CipherInit	(	TEE_OperationHandle	operation,
		const void *	nonce,
		uint32_t	nonceLen
	)

Crypto, Authenticated Encryption with Symmetric key Verification Functions.

TEE_CipherInit() - starts the symmetric cipher operation.

The operation shall have been associated with a key. If the operation is in active state, it is reset and then initialized. If the operation is in initial state, it is moved to active state.

Parameters

operation	A handle on an opened cipher operation setup with a key
nonce	Buffer containing the operation Initialization Vector as appropriate.
nonceLen	length of the buffer

◆ TEE_CipherUpdate()

TEE_Result TEE_CipherUpdate	(	TEE_OperationHandle	operation,
		const void *	srcData,
		uint32_t	srcLen,
		void *	destData,
		uint32_t *	destLen
	)

Crypto, Authenticated Encryption with Symmetric key Verification Functions.

TEE_CipherUpdate() - encrypts or decrypts input data.

Input data does not have to be a multiple of block size. Subsequent calls to this function are possible. Unless one or more calls of this function have supplied sufficient input data, no output is generated. The cipher operation is finalized with a call to TEE_CipherDoFinal .The buffers srcData and destData SHALL be either completely disjoint or equal in their starting positions.The operation SHALL be in active state.

Parameters

operation	Handle of a running Cipher operation
srcData	Input data buffer to be encrypted or decrypted
srcLen	length of input buffer
destData	output buffer
destLen	ouput buffer length.

Returns: 0 on success else; TEE_ERROR_SHORT_BUFFER If the output buffer is not large enough to contain the output. In this case, the input is not fed into the algorithm.

◆ TEE_CloseAndDeletePersistentObject()

void TEE_CloseAndDeletePersistentObject ( TEE_ObjectHandle object )

◆ TEE_CloseAndDeletePersistentObject1()

TEE_Result TEE_CloseAndDeletePersistentObject1 ( TEE_ObjectHandle object )

◆ TEE_CloseObject()

void TEE_CloseObject ( TEE_ObjectHandle object )

Core Functions, Secure Storage Functions (data is isolated for each TA)

TEE_CloseObject() - Closes an opened object handle.

The object can be persistent or transient.For transient objects, TEE_CloseObject is equivalent to TEE_FreeTransientObject.

Parameters

object Handle of the object.

Returns: TEE_SUCCESS if success else error occured.

TEE_CloseObject() - Function closes an opened object handle.

The object can be persistent or transient.For transient objects, TEE_CloseObject is equivalent to TEE_FreeTransientObject.

Parameters

object Handle of the object

Returns: TEE_SUCCESS if success else error occured.

◆ TEE_CloseTASession()

void TEE_CloseTASession ( TEE_TASessionHandle session )

◆ TEE_CopyObjectAttributes()

void TEE_CopyObjectAttributes	(	TEE_ObjectHandle	destObject,
		TEE_ObjectHandle	srcObject
	)

◆ TEE_CopyObjectAttributes1()

TEE_Result TEE_CopyObjectAttributes1	(	TEE_ObjectHandle	destObject,
		TEE_ObjectHandle	srcObject
	)

◆ TEE_CopyOperation()

void TEE_CopyOperation	(	TEE_OperationHandle	dstOperation,
		TEE_OperationHandle	srcOperation
	)

◆ TEE_CreatePersistentObject()

TEE_Result TEE_CreatePersistentObject	(	uint32_t	storageID,
		const void *	objectID,
		uint32_t	objectIDLen,
		uint32_t	flags,
		TEE_ObjectHandle	attributes,
		const void *	initialData,
		uint32_t	initialDataLen,
		TEE_ObjectHandle *	object
	)

Core Functions, Secure Storage Functions (data is isolated for each TA)

TEE_CreatePersistentObject() - Creates a persistent object with initial attributes.

In this function an initial data stream content returns either a handle on the created object or TEE_HANDLE_NULL upon failure.

Parameters

storageID	The storage to use.
objectID	The object identifier
objectIDLen	The object identifier
flags	The flags which determine the settings under which the object is opened.
attributes	A handle on a persistent object or an initialized transient object from which to take the persistent object attributes
initialData	The initial data content of the persistent object
initialDataLen	The initial data content of the persistent object
object	A pointer to the handle which contains the opened handle upon successful completion

Returns: 0 if success else error occured.

TEE_CreatePersistentObject() - Creates a persistent object with initial attributes.

An initial data stream content, and optionally returns either a handle on the created object, or TEE_HANDLE_NULL upon failure.

Parameters

storageID	The storage to use.
objectID	The object identifier
objectIDLen	The object identifier
flags	The flags which determine the settings under which the object is opened.
attributes	A handle on a persistent object or an initialized transient object from which to take the persistent object attributes
initialData	The initial data content of the persistent object
initialDataLen	The initial data content of the persistent object
object	A pointer to the handle, which contains the opened handle upon successful completion

Returns: 0 if success, else error occured.

◆ TEE_DeriveKey()

void TEE_DeriveKey	(	TEE_OperationHandle	operation,
		const TEE_Attribute *	params,
		uint32_t	paramCount,
		TEE_ObjectHandle	derivedKey
	)

◆ TEE_DigestDoFinal()

TEE_Result TEE_DigestDoFinal	(	TEE_OperationHandle	operation,
		const void *	chunk,
		uint32_t	chunkLen,
		void *	hash,
		uint32_t *	hashLen
	)

TEE_DigestDoFinal() - Finalizes the message digest operation and produces the message hash.

This function finalizes the message digest operation and produces the message hash. Afterwards the Message Digest operation is reset to initial state and can be reused.

Parameters

operation	Handle of a running Message Digest operation.
chunk	Chunk of data to be hashed.
chunkLen	size of the chunk.
hash	Output buffer filled with the message hash.
hashLen	lenth of the mesaage hash.

Returns: 0 on success; TEE_ERROR_SHORT_BUFFER If the output buffer is too small. In this case, the operation is not finalized.

◆ TEE_DigestUpdate()

void TEE_DigestUpdate	(	TEE_OperationHandle	operation,
		const void *	chunk,
		uint32_t	chunkSize
	)

Crypto, Message Digest Functions.

TEE_DigestUpdate()- Accumulates message data for hashing.

This function describes the message does not have to be block aligned. Subsequent calls to this function are possible.The operation may be in either initial or active state and becomes active.

Parameters

operation	Handle of a running Message Digest operation.
chunk	Chunk of data to be hashed
chunkSize	size of the chunk.

◆ TEE_Free()

void TEE_Free ( void * buffer )

TEE_Free() - causes the space pointed to by buffer to be deallocated;that is made available for further allocation.

This function describes if buffer is a NULL pointer, TEE_Free does nothing. Otherwise, it is a Programmer Error if the argument does not match a pointer previously returned by the TEE_Malloc or TEE_Realloc if the space has been deallocated by a call to TEE_Free or TEE_Realloc.

Parameters

buffer The pointer to the memory block to be freed.

◆ TEE_FreeOperation()

void TEE_FreeOperation ( TEE_OperationHandle operation )

Crypto, for all Crypto Functions.

TEE_FreeOperation() - Deallocates all resources associated with an operation handle.

This function deallocates all resources associated with an operation handle. After this function is called, the operation handle is no longer valid. All cryptographic material in the operation is destroyed. The function does nothing if operation is TEE_HANDLE_NULL.

Parameters

operation Reference to operation handle.

Returns: nothing after the operation free.

◆ TEE_FreePersistentObjectEnumerator()

void TEE_FreePersistentObjectEnumerator ( TEE_ObjectEnumHandle objectEnumerator )

◆ TEE_FreePropertyEnumerator()

void TEE_FreePropertyEnumerator ( TEE_PropSetHandle enumerator )

◆ TEE_FreeTransientObject()

void TEE_FreeTransientObject ( TEE_ObjectHandle object )

Crypto, Asymmetric key Verification Functions.

TEE_FreeTransientObject() - Deallocates a transient object previously allocated with TEE_AllocateTransientObject .

this function describes the object handle is no longer valid and all resources associated with the transient object shall have been reclaimed after the TEE_AllocateTransientObject() call.

Parameters

object Handle on the object to free.

◆ TEE_GenerateKey()

TEE_Result TEE_GenerateKey	(	TEE_ObjectHandle	object,
		uint32_t	keySize,
		const TEE_Attribute *	params,
		uint32_t	paramCount
	)

Crypto, Asymmetric key Verification Functions.

TEE_GenerateKey () - Generates a random key or a key-pair and populates a transient key object with the generated key material.

The size of the desired key is passed in the keySize parameter and shall be less than or equal to the maximum key size specified when the transient object was created.

Parameters

object	Handle on an uninitialized transient key to populate with the generated key.
keySize	Requested key size shall be less than or equal to the maximum key size specified when the object container was created
params	Parameters for the key generation.
paramCount	The values of all parameters are copied nto the object so that the params array and all the memory buffers it points to may be freed after this routine returns without affecting the object.

Returns: 0 on succes; TEE_ERROR_BAD_PARAMETERS If an incorrect or inconsistent attribute is detected. The checks that are performed depend on the implementation.

◆ TEE_GenerateRandom()

void TEE_GenerateRandom	(	void *	randomBuffer,
		uint32_t	randomBufferLen
	)

Crypto, common.

TEE_GenerateRandom() - Generates random data.

This function generates random data of random buffer length and is stored in to random Buffer by calling wc_RNG_GenerateBlock().If ret is not equal
to 0 then TEE_Panic is called.

Parameters

randomBuffer	Reference to generated random data
randomBufferLen	Byte length of requested random data

Returns: random data random data will be returned.

TEE_GenerateRandom() - Generates random data.

This function generates random data of random bufferlength and is stored in to randomBuffer by calling sgx_read_rand().

Parameters

randomBuffer	Reference to generated random data
randomBufferLen	Byte length of requested random data

◆ TEE_GetCancellationFlag()

bool TEE_GetCancellationFlag ( void )

◆ TEE_GetInstanceData()

const void * TEE_GetInstanceData ( void )

◆ TEE_GetNextPersistentObject()

TEE_Result TEE_GetNextPersistentObject	(	TEE_ObjectEnumHandle	objectEnumerator,
		TEE_ObjectInfo *	objectInfo,
		void *	objectID,
		uint32_t *	objectIDLen
	)

◆ TEE_GetNextProperty()

TEE_Result TEE_GetNextProperty ( TEE_PropSetHandle enumerator )

◆ TEE_GetObjectBufferAttribute()

TEE_Result TEE_GetObjectBufferAttribute	(	TEE_ObjectHandle	object,
		uint32_t	attributeID,
		void *	buffer,
		uint32_t *	size
	)

◆ TEE_GetObjectInfo()

void TEE_GetObjectInfo	(	TEE_ObjectHandle	object,
		TEE_ObjectInfo *	objectInfo
	)

◆ TEE_GetObjectInfo1()

TEE_Result TEE_GetObjectInfo1	(	TEE_ObjectHandle	object,
		TEE_ObjectInfo *	objectInfo
	)

Core Functions, Secure Storage Functions (data is isolated for each TA)

TEE_GetObjectInfo1() - Returns the characteristics of an object.

This function returns a handle which can be used to access the object’s attributes and data stream.

Parameters

objectInfo	Pointer to a structure filled with the object information
object	Handle of the object

Returns: 0 if success else error occured.

TEE_GetObjectInfo1() - Function returns the characteristics of an object.

It returns a handle that can be used to access the object’s attributes and data stream.

Parameters

objectInfo	Pointer to a structure filled with the object information
object	Handle of the object

Returns: 0 if success else error occured.

◆ TEE_GetObjectValueAttribute()

TEE_Result TEE_GetObjectValueAttribute	(	TEE_ObjectHandle	object,
		uint32_t	attributeID,
		uint32_t *	a,
		uint32_t *	b
	)

◆ TEE_GetOperationInfo()

void TEE_GetOperationInfo	(	TEE_OperationHandle	operation,
		TEE_OperationInfo *	operationInfo
	)

◆ TEE_GetOperationInfoMultiple()

TEE_Result TEE_GetOperationInfoMultiple	(	TEE_OperationHandle	operation,
		TEE_OperationInfoMultiple *	operationInfoMultiple,
		uint32_t *	operationSize
	)

◆ TEE_GetPropertyAsBinaryBlock()

TEE_Result TEE_GetPropertyAsBinaryBlock	(	TEE_PropSetHandle	propsetOrEnumerator,
		const char *	name,
		void *	valueBuffer,
		uint32_t *	valueBufferLen
	)

◆ TEE_GetPropertyAsBool()

TEE_Result TEE_GetPropertyAsBool	(	TEE_PropSetHandle	propsetOrEnumerator,
		const char *	name,
		bool *	value
	)

◆ TEE_GetPropertyAsIdentity()

TEE_Result TEE_GetPropertyAsIdentity	(	TEE_PropSetHandle	propsetOrEnumerator,
		const char *	name,
		TEE_Identity *	value
	)

◆ TEE_GetPropertyAsString()

TEE_Result TEE_GetPropertyAsString	(	TEE_PropSetHandle	propsetOrEnumerator,
		const char *	name,
		char *	valueBuffer,
		uint32_t *	valueBufferLen
	)

◆ TEE_GetPropertyAsU32()

TEE_Result TEE_GetPropertyAsU32	(	TEE_PropSetHandle	propsetOrEnumerator,
		const char *	name,
		uint32_t *	value
	)

◆ TEE_GetPropertyAsUUID()

TEE_Result TEE_GetPropertyAsUUID	(	TEE_PropSetHandle	propsetOrEnumerator,
		const char *	name,
		TEE_UUID *	value
	)

◆ TEE_GetPropertyName()

TEE_Result TEE_GetPropertyName	(	TEE_PropSetHandle	enumerator,
		void *	nameBuffer,
		uint32_t *	nameBufferLen
	)

◆ TEE_GetREETime()

void TEE_GetREETime ( TEE_Time * time )

Core Functions, Time Functions.

TEE_GetREETime() - Retrieves the current REE system time.

This function retrieves the current time as seen from the point of view of
the REE.

Parameters

time	Filled with the number of seconds and milliseconds

TEE_GetREETime() - Function retrieves the current REE system time.

This function retrieves the current time as seen from the point of view of the REE.

Parameters

time	Filled with the number of seconds and milliseconds.

◆ TEE_GetSystemTime()

void TEE_GetSystemTime ( TEE_Time * time )

Core Functions, Time Functions.

TEE_GetSystemTime() - Retrieves the current system time.

This function describes the system time has an arbitrary implementation
defined origin that can vary across TA instances. The minimum guarantee
is that the system time shall be monotonic for a given TA instance.

Parameters

time	Filled with the number of seconds and milliseconds

TEE_GetSystemTime() - Retrieves the current system time.

The system time has an arbitrary implementation-defined origin that can vary across TA instances

Parameters

time	Filled with the number of seconds and milliseconds.

◆ TEE_GetTAPersistentTime()

TEE_Result TEE_GetTAPersistentTime ( TEE_Time * time )

◆ TEE_InitRefAttribute()

void TEE_InitRefAttribute	(	TEE_Attribute *	attr,
		uint32_t	attributeID,
		const void *	buffer,
		uint32_t	length
	)

Crypto, Asymmetric key Verification Functions.

TEE_InitRefAttribute() - The helper function can be used to populate a single attribute either with a reference to a buffer or with integer values.

In TEE_InitRefAttribute () only the buffer pointer is copied, not the content of the buffer. This means that the attribute structure maintains a pointer back to the supplied buffer. It is the responsibility of the TA author to ensure that the contents of the buffer maintain their value until the attributes array is no longer in use.

Parameters

attr	attribute structure to initialize.
attributeID	Identifier of the attribute to populate.
buffer	input buffer that holds the content of the attribute.
length	buffer length.

◆ TEE_InitValueAttribute()

void TEE_InitValueAttribute	(	TEE_Attribute *	attr,
		uint32_t	attributeID,
		uint32_t	a,
		uint32_t	b
	)

Crypto, Asymmetric key Verification Functions.

TEE_InitValueAttribute() - The helper function can be used to populate a single attribute either with a reference to a buffer or with integer values.

Parameters

attr	attribute structure to initialize.
attributeID	Identifier of the attribute to populate.
a	unsigned integer value to assign to the a member of the attribute structure.
b	unsigned integer value to assign to the b member of the attribute structure

◆ TEE_InvokeTACommand()

TEE_Result TEE_InvokeTACommand	(	TEE_TASessionHandle	session,
		uint32_t	cancellationRequestTimeout,
		uint32_t	commandID,
		uint32_t	paramTypes,
		TEE_Param	params[TEE_NUM_PARAMS],
		uint32_t *	returnOrigin
	)

◆ TEE_IsAlgorithmSupported()

TEE_Result TEE_IsAlgorithmSupported	(	uint32_t	algId,
		uint32_t	element
	)

◆ TEE_MACCompareFinal()

TEE_Result TEE_MACCompareFinal	(	TEE_OperationHandle	operation,
		const void *	message,
		uint32_t	messageLen,
		const void *	mac,
		uint32_t	macLen
	)

◆ TEE_MACComputeFinal()

TEE_Result TEE_MACComputeFinal	(	TEE_OperationHandle	operation,
		const void *	message,
		uint32_t	messageLen,
		void *	mac,
		uint32_t *	macLen
	)

◆ TEE_MACInit()

void TEE_MACInit	(	TEE_OperationHandle	operation,
		const void *	IV,
		uint32_t	IVLen
	)

◆ TEE_MACUpdate()

void TEE_MACUpdate	(	TEE_OperationHandle	operation,
		const void *	chunk,
		uint32_t	chunkSize
	)

◆ TEE_Malloc()

void * TEE_Malloc	(	uint32_t	size,
		uint32_t	hint
	)

TEE_Malloc() - Allocates space for an object whose size in bytes is specified in the parameter size.

This function describes the pointer returned is guaranteed to be aligned
such that it may be assigned as a pointer to any basic C type.The valid hint values are a bitmask and can be independently set. This parameter allows Trusted Applications to refer to various pools of memory or to
request special characteristics for the allocated memory by using an
implementation-defined hint. Future versions of this specification may introduce additional standard hints.

Parameters

size	The size of the buffer to be allocated.
hint	A hint to the allocator.

Returns: Upon successful completion, with size not equal to zero, the function returns a pointer to the allocated space.

◆ TEE_MaskCancellation()

bool TEE_MaskCancellation ( void )

◆ TEE_MemCompare()

int32_t TEE_MemCompare	(	const void *	buffer1,
		const void *	buffer2,
		uint32_t	size
	)

◆ TEE_MemFill()

void * TEE_MemFill	(	void *	buff,
		uint32_t	x,
		uint32_t	size
	)

◆ TEE_MemMove()

void * TEE_MemMove	(	void *	dest,
		const void *	src,
		uint32_t	size
	)

◆ TEE_OpenPersistentObject()

TEE_Result TEE_OpenPersistentObject	(	uint32_t	storageID,
		const void *	objectID,
		uint32_t	objectIDLen,
		uint32_t	flags,
		TEE_ObjectHandle *	object
	)

Core Functions, Secure Storage Functions (data is isolated for each TA)

TEE_OpenPersistentObject() - Opens a handle on an existing persistent object.

This function returns a handle which can be used to access the object’s attributes and data stream.

Parameters

storageID	The storage to use
objectID	The object identifier
objectIDLen	The object identifier
flags	The flags which determine the settings under which the object is opened.
object	A pointer to the handle, which contains the opened handle upon successful completion

Returns: 0 if success else error occured.

TEE_OpenPersistentObject() - Opens a handle on an existing persistent object.

This function returns a handle that can be used to access the object’s attributes and data stream.

Parameters

storageID	The storage to use.
objectID	The object identifier
objectIDLen	The object identifier
flags	The flags which determine the settings under which the object is opened.
object	A pointer to the handle, which contains the opened handle upon successful completion

Returns: 0 if success, else error occured.

◆ TEE_OpenTASession()

TEE_Result TEE_OpenTASession	(	const TEE_UUID *	destination,
		uint32_t	cancellationRequestTimeout,
		uint32_t	paramTypes,
		TEE_Param	params[TEE_NUM_PARAMS],
		TEE_TASessionHandle *	session,
		uint32_t *	returnOrigin
	)

◆ TEE_Panic()

void TEE_Panic ( TEE_Result panicCode )

◆ TEE_PopulateTransientObject()

TEE_Result TEE_PopulateTransientObject	(	TEE_ObjectHandle	object,
		const TEE_Attribute *	attrs,
		uint32_t	attrCount
	)

◆ TEE_ReadObjectData()

TEE_Result TEE_ReadObjectData	(	TEE_ObjectHandle	object,
		void *	buffer,
		uint32_t	size,
		uint32_t *	count
	)

Core Functions, Secure Storage Functions (data is isolated for each TA)

TEE_ReadObjectData() - Attempts to read size bytes from the data stream associated with the object into the buffer pointed to by buffer.

The bytes are read starting at the position in the data stream currently stored in the object handle. The handle’s position is incremented by the number of bytes actually read. On completion of TEE_ReadObjectData sets the number of bytes actually read in the "uint32_t" pointed to by count. The value written to *count may be less than size if the number of bytes until the end-of3067 stream is less than size. It is set to 0 if the position at the start of the read operation is at or beyond the end-of-stream. These are the only cases where *count may be less than size.

Parameters

object	Handle of the object
buffer	The buffer containing the data to be written
size	The number of bytes to write
count	size of the buffer.

Returns: TEE_SUCCESS if success else error occured.

TEE_ReadObjectData() - Attempts to read size bytes from the data stream associated with the object object into the buffer pointed to by buffer.

The bytes are read starting at the position in the data stream currently stored in the object handle. The handle’s position is incremented by the number of bytes actually read. On completion TEE_ReadObjectData sets the number of bytes actually read in the uint32_t pointed to by count. The value written to *count may be less than size if the number of bytes until the end-of3067 stream is less than size. It is set to 0 if the position at the start of the read operation is at or beyond the end-of-stream. These are the only cases where *count may be less than size.

Parameters

object	Handle of the object
buffer	The buffer containing the data to be written
size	The number of bytes to write
count	size of the buffer.

Returns: TEE_SUCCESS if success, else error occured.

◆ TEE_Realloc()

void * TEE_Realloc	(	void *	buffer,
		uint32_t	newSize
	)

TEE_Realloc() - Changes the size of the memory object pointed to by buffer to the size specified by new size.

This function describes the content of the object remains unchanged up to the lesser of the new and old sizes. Space in excess of the old size contains unspecified content. If the new size of the memory object requires movement of the object, the space for the previous instantiation of the object is deallocated. If the space cannot be allocated, the original object remains allocated, and this function returns a NULL pointer.

Parameters

buffer	The pointer to the object to be reallocated.
newSize	The new size required for the object

Returns: Upon successful completion, TEE_Realloc returns a pointer to the (possibly moved) allocated space. If there is not enough available memory, TEE_Realloc returns a NULL pointer and the original buffer is still allocated and unchanged.

◆ TEE_RenamePersistentObject()

TEE_Result TEE_RenamePersistentObject	(	TEE_ObjectHandle	object,
		const void *	newObjectID,
		uint32_t	newObjectIDLen
	)

◆ TEE_ResetOperation()

void TEE_ResetOperation ( TEE_OperationHandle operation )

◆ TEE_ResetPersistentObjectEnumerator()

void TEE_ResetPersistentObjectEnumerator ( TEE_ObjectEnumHandle objectEnumerator )

◆ TEE_ResetPropertyEnumerator()

void TEE_ResetPropertyEnumerator ( TEE_PropSetHandle enumerator )

◆ TEE_ResetTransientObject()

void TEE_ResetTransientObject ( TEE_ObjectHandle object )

◆ TEE_RestrictObjectUsage()

void TEE_RestrictObjectUsage	(	TEE_ObjectHandle	object,
		uint32_t	objectUsage
	)

◆ TEE_RestrictObjectUsage1()

TEE_Result TEE_RestrictObjectUsage1	(	TEE_ObjectHandle	object,
		uint32_t	objectUsage
	)

◆ TEE_SeekObjectData()

TEE_Result TEE_SeekObjectData	(	TEE_ObjectHandle	object,
		int32_t	offset,
		TEE_Whence	whence
	)

◆ TEE_SetInstanceData()

void TEE_SetInstanceData ( const void * instanceData )

◆ TEE_SetOperationKey()

TEE_Result TEE_SetOperationKey	(	TEE_OperationHandle	operation,
		TEE_ObjectHandle	key
	)

Crypto, Authenticated Encryption with Symmetric key Verification Functions.

TEE_SetOperationKey() - Programs the key of an operation; that is, it associates an operation with a key.

The key material is copied from the key object handle into the operation. After the key has been set, there is no longer any link between the operation and the key object. The object handle can be closed or reset and this will not affect the operation. This copied material exists until the operation is freed using TEE_FreeOperation or another key is set into the operation.

Parameters

operation	Operation handle.
key	A handle on a key object.

Returns: 0 on success return; TEE_ERROR_CORRUPT_OBJECT If the object is corrupt. The object handle is closed.; TEE_ERROR_STORAGE_NOT_AVAILABLE If the persistent object is stored in a storage area which is currently inaccessible.

◆ TEE_SetOperationKey2()

TEE_Result TEE_SetOperationKey2	(	TEE_OperationHandle	operation,
		TEE_ObjectHandle	key1,
		TEE_ObjectHandle	key2
	)

◆ TEE_SetTAPersistentTime()

TEE_Result TEE_SetTAPersistentTime ( const TEE_Time * time )

◆ TEE_StartPersistentObjectEnumerator()

TEE_Result TEE_StartPersistentObjectEnumerator	(	TEE_ObjectEnumHandle	objectEnumerator,
		uint32_t	storageID
	)

◆ TEE_StartPropertyEnumerator()

void TEE_StartPropertyEnumerator	(	TEE_PropSetHandle	enumerator,
		TEE_PropSetHandle	propSet
	)

◆ TEE_TruncateObjectData()

TEE_Result TEE_TruncateObjectData	(	TEE_ObjectHandle	object,
		uint32_t	size
	)

◆ TEE_UnmaskCancellation()

bool TEE_UnmaskCancellation ( void )

◆ TEE_Wait()

TEE_Result TEE_Wait ( uint32_t timeout )

◆ TEE_WriteObjectData()

TEE_Result TEE_WriteObjectData	(	TEE_ObjectHandle	object,
		const void *	buffer,
		uint32_t	size
	)

Core Functions, Secure Storage Functions (data is isolated for each TA)

TEE_WriteObjectData() - Writes the buffer data in to persistent objects.

In this function it checks if object is present or not, the encryption/ decryption buffer is taken by calling mbedtls_aes_crypt_cbc() then that buffer data is encrypted and mapped to object.On the base of object creation TEE_SUCCESS appears else TEE_ERROR_GENERIC appears.

Parameters

object	Handle of the object
buffer	The buffer containing the data to be written
size	The number of bytes to write

Returns: TEE_SUCCESS if success else error occured.

TEE_WriteObjectData() - writes size bytes from the buffer pointed to by buffer to the data stream associated with the open object handle object.

If the current data position points before the end-of-stream, then size bytes are written to the data stream, overwriting bytes starting at the current data position. If the current data position points beyond the stream’s end, then the data stream is first extended with zero bytes until the length indicated by the data position indicator is reached, and then size bytes are written to the stream.

Parameters

object	Handle of the object
buffer	The buffer containing the data to be written
size	The number of bytes to write

Returns: TEE_SUCCESS if success else error occured.
