#include <stdint.h>
#include <stddef.h>
#include <stdbool.h>
#include <limits.h>
#include "tee-common.h"

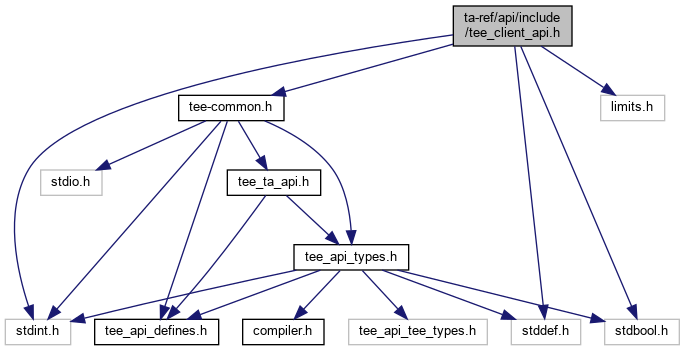

Include dependency graph for tee_client_api.h:

This graph shows which files directly or indirectly include this file:

Classes
struct	TEEC_Context

struct	TEEC_UUID

struct	TEEC_SharedMemory

struct	TEEC_TempMemoryReference

struct	TEEC_RegisteredMemoryReference

struct	TEEC_Value

union	TEEC_Parameter

struct	TEEC_Session

struct	TEEC_Operation

Typedefs
typedef uint32_t	TEEC_Result

Functions
TEEC_Result	TEEC_InitializeContext (const char name, TEEC_Context context)

void	TEEC_FinalizeContext (TEEC_Context *context)

TEEC_Result	TEEC_OpenSession (TEEC_Context context, TEEC_Session session, const TEEC_UUID destination, uint32_t connectionMethod, const void connectionData, TEEC_Operation operation, uint32_t returnOrigin)

void	TEEC_CloseSession (TEEC_Session *session)

TEEC_Result	TEEC_InvokeCommand (TEEC_Session session, uint32_t commandID, TEEC_Operation operation, uint32_t *returnOrigin)

TEEC_Result	TEEC_RegisterSharedMemory (TEEC_Context context, TEEC_SharedMemory sharedMem)

TEEC_Result	TEEC_AllocateSharedMemory (TEEC_Context context, TEEC_SharedMemory sharedMem)

void	TEEC_ReleaseSharedMemory (TEEC_SharedMemory *sharedMemory)

void	TEEC_RequestCancellation (TEEC_Operation *operation)

Typedef Documentation

◆ TEEC_Result

typedef uint32_t TEEC_Result

Function Documentation

◆ TEEC_AllocateSharedMemory()

TEEC_Result TEEC_AllocateSharedMemory	(	TEEC_Context *	context,
		TEEC_SharedMemory *	sharedMem
	)

TEEC_AllocateSharedMemory() - Allocate shared memory for TEE.

Parameters

context	The initialized TEE context structure in which scope to open the session.
sharedMem	Pointer to the allocated shared memory.

Returns: TEEC_SUCCESS The registration was successful.; TEEC_ERROR_OUT_OF_MEMORY Memory exhaustion.; TEEC_Result Something failed.

◆ TEEC_CloseSession()

void TEEC_CloseSession ( TEEC_Session * session )

TEEC_CloseSession() - Closes the session which has been opened with the specific trusted application.

Parameters

session The opened session to close.

◆ TEEC_FinalizeContext()

void TEEC_FinalizeContext ( TEEC_Context * context )

TEEC_FinalizeContext() - Destroys a context holding connection information on the specific TEE.

This function destroys an initialized TEE context, closing the connection between the client application and the TEE. This function must only be called when all sessions related to this TEE context have been closed and all shared memory blocks have been released.

Parameters

context The context to be destroyed.

TEEC_FinalizeContext() - Destroys a context holding connection information on the specific TEE.

This function finalizes an initialized TEE context, closing the connection between the client application and the TEE. This function must only be called when all sessions related to this TEE context have been closed and all shared memory blocks have been released.

Parameters

context The context to be finalized.

◆ TEEC_InitializeContext()

TEEC_Result TEEC_InitializeContext	(	const char *	name,
		TEEC_Context *	context
	)

TEEC_InitializeContext() - Initializes a context holding connection information on the specific TEE, designated by the name string.

Parameters

name	A zero-terminated string identifying the TEE to connect to. If name is set to NULL, the default TEE is connected to. NULL is the only supported value in this version of the API implementation.
context	The context structure which is to be initialized.

Returns: TEEC_SUCCESS The initialization was successful.; TEEC_Result Something failed.

◆ TEEC_InvokeCommand()

TEEC_Result TEEC_InvokeCommand	(	TEEC_Session *	session,
		uint32_t	commandID,
		TEEC_Operation *	operation,
		uint32_t *	returnOrigin
	)

TEEC_InvokeCommand() - Executes a command in the specified trusted application.

Parameters

session	A handle to an open connection to the trusted application.
commandID	Identifier of the command in the trusted application to invoke.
operation	An operation structure to use in the invoke command. May be set to NULL to signify no operation structure needed.
returnOrigin	A parameter which will hold the error origin if this function returns any value other than TEEC_SUCCESS.

Returns: TEEC_SUCCESS OpenSession successfully opened a new session.; TEEC_Result Something failed.

◆ TEEC_OpenSession()

TEEC_Result TEEC_OpenSession	(	TEEC_Context *	context,
		TEEC_Session *	session,
		const TEEC_UUID *	destination,
		uint32_t	connectionMethod,
		const void *	connectionData,
		TEEC_Operation *	operation,
		uint32_t *	returnOrigin
	)

TEEC_OpenSession() - Opens a new session with the specified trusted application.

Parameters

context	The initialized TEE context structure in which scope to open the session.
session	The session to initialize.
destination	A structure identifying the trusted application with which to open a session.
connectionMethod	The connection method to use.
connectionData	Any data necessary to connect with the chosen connection method. Not supported, should be set to NULL.
operation	An operation structure to use in the session. May be set to NULL to signify no operation structure needed.
returnOrigin	A parameter which will hold the error origin if this function returns any value other than TEEC_SUCCESS.

Returns: TEEC_SUCCESS OpenSession successfully opened a new session.; TEEC_Result Something failed.

◆ TEEC_RegisterSharedMemory()

TEEC_Result TEEC_RegisterSharedMemory	(	TEEC_Context *	context,
		TEEC_SharedMemory *	sharedMem
	)

TEEC_RegisterSharedMemory() - Register a block of existing memory as a shared block within the scope of the specified context.

Parameters

context	The initialized TEE context structure in which scope to open the session.
sharedMem	pointer to the shared memory structure to register.

Returns: TEEC_SUCCESS The registration was successful.; TEEC_ERROR_OUT_OF_MEMORY Memory exhaustion.; TEEC_Result Something failed.

◆ TEEC_ReleaseSharedMemory()

void TEEC_ReleaseSharedMemory ( TEEC_SharedMemory * sharedMemory )

TEEC_ReleaseSharedMemory() - Free or deregister the shared memory.

Parameters

sharedMem Pointer to the shared memory to be freed.

◆ TEEC_RequestCancellation()

void TEEC_RequestCancellation ( TEEC_Operation * operation )

TEEC_RequestCancellation() - Request the cancellation of a pending open session or command invocation.

Parameters

operation Pointer to an operation previously passed to open session or invoke.
