#include <stdbool.h>
#include <stdint.h>
#include <stdarg.h>
#include <stddef.h>

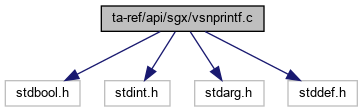

Include dependency graph for vsnprintf.c:

Classes
struct	out_fct_wrap_type

Macros
#define	PRINTF_NTOA_BUFFER_SIZE 32U

#define	PRINTF_FTOA_BUFFER_SIZE 32U

#define	PRINTF_SUPPORT_FLOAT

#define	PRINTF_SUPPORT_LONG_LONG

#define	PRINTF_SUPPORT_PTRDIFF_T

#define	FLAGS_ZEROPAD (1U << 0U)

#define	FLAGS_LEFT (1U << 1U)

#define	FLAGS_PLUS (1U << 2U)

#define	FLAGS_SPACE (1U << 3U)

#define	FLAGS_HASH (1U << 4U)

#define	FLAGS_UPPERCASE (1U << 5U)

#define	FLAGS_CHAR (1U << 6U)

#define	FLAGS_SHORT (1U << 7U)

#define	FLAGS_LONG (1U << 8U)

#define	FLAGS_LONG_LONG (1U << 9U)

#define	FLAGS_PRECISION (1U << 10U)

#define	_putchar putchar

Typedefs
typedef void(*	out_fct_type) (char character, void *buffer, size_t idx, size_t maxlen)

Functions
int	putchar (char ch)

static void	_out_buffer (char character, void *buffer, size_t idx, size_t maxlen)

static void	_out_null (char character, void *buffer, size_t idx, size_t maxlen)

static void	_out_char (char character, void *buffer, size_t idx, size_t maxlen)

static void	_out_fct (char character, void *buffer, size_t idx, size_t maxlen)

static unsigned int	_strlen (const char *str)

static bool	_is_digit (char ch)

static unsigned int	_atoi (const char **str)

static size_t	_ntoa_format (out_fct_type out, char buffer, size_t idx, size_t maxlen, char buf, size_t len, bool negative, unsigned int base, unsigned int prec, unsigned int width, unsigned int flags)

static size_t	_ntoa_long (out_fct_type out, char *buffer, size_t idx, size_t maxlen, unsigned long value, bool negative, unsigned long base, unsigned int prec, unsigned int width, unsigned int flags)

static size_t	_ntoa_long_long (out_fct_type out, char *buffer, size_t idx, size_t maxlen, unsigned long long value, bool negative, unsigned long long base, unsigned int prec, unsigned int width, unsigned int flags)

static size_t	_ftoa (out_fct_type out, char *buffer, size_t idx, size_t maxlen, double value, unsigned int prec, unsigned int width, unsigned int flags)

static int	_vsnprintf (out_fct_type out, char buffer, const size_t maxlen, const char format, va_list va)

int	sprintf (char buffer, const char format,...)

int	snprintf (char buffer, size_t count, const char format,...)

int	vsnprintf (char buffer, size_t count, const char format, va_list va)

int	fctprintf (void(out)(char character, void arg), void arg, const char format,...)

Macro Definition Documentation

◆ _putchar

#define _putchar putchar

◆ FLAGS_CHAR

#define FLAGS_CHAR (1U << 6U)

◆ FLAGS_HASH

#define FLAGS_HASH (1U << 4U)

◆ FLAGS_LEFT

#define FLAGS_LEFT (1U << 1U)

◆ FLAGS_LONG

#define FLAGS_LONG (1U << 8U)

◆ FLAGS_LONG_LONG

#define FLAGS_LONG_LONG (1U << 9U)

◆ FLAGS_PLUS

#define FLAGS_PLUS (1U << 2U)

◆ FLAGS_PRECISION

#define FLAGS_PRECISION (1U << 10U)

◆ FLAGS_SHORT

#define FLAGS_SHORT (1U << 7U)

◆ FLAGS_SPACE

#define FLAGS_SPACE (1U << 3U)

◆ FLAGS_UPPERCASE

#define FLAGS_UPPERCASE (1U << 5U)

◆ FLAGS_ZEROPAD

#define FLAGS_ZEROPAD (1U << 0U)

◆ PRINTF_FTOA_BUFFER_SIZE

#define PRINTF_FTOA_BUFFER_SIZE 32U

◆ PRINTF_NTOA_BUFFER_SIZE

#define PRINTF_NTOA_BUFFER_SIZE 32U

◆ PRINTF_SUPPORT_FLOAT

#define PRINTF_SUPPORT_FLOAT

◆ PRINTF_SUPPORT_LONG_LONG

#define PRINTF_SUPPORT_LONG_LONG

◆ PRINTF_SUPPORT_PTRDIFF_T

#define PRINTF_SUPPORT_PTRDIFF_T

Typedef Documentation

◆ out_fct_type

typedef void(* out_fct_type) (char character, void *buffer, size_t idx, size_t maxlen)

Function Documentation

◆ _atoi()

static unsigned int _atoi ( const char ** str )

static

_atoi() - Converts the internal ASCII string into an unsigned integer.

This function is to convert the internal ASCII string into unsigned integer.

Parameters

str	string representation of an integral number.

Returns: i unsigned integer value.

◆ _ftoa()

static size_t _ftoa	(	out_fct_type	out,
		char *	buffer,
		size_t	idx,
		size_t	maxlen,
		double	value,
		unsigned int	prec,
		unsigned int	width,
		unsigned int	flags
	)

static

_ftoa() - Converts a given floating-point number or a double to a string with the use of standard library functions.

This function checks whether the value is negative or not, then it checks with if condtion default precision to 6, if it not set it will set explicitly. Using the while loop it limits the precision to 9,because it causes a overflow error when precision crosses above 10. Using the if condition rollover or round If the precsion value is greater than 0.5 up the precision value.it round up to

Using the while_loop condition adding extra zeros and append decimal value to the lenghth. Finally using the conditional statement executes pad leading zeros, handling the hash value, padding spaces up to given width and reverses the string.

Parameters

out	type of out_fct_type
buffer	Pointer to a character string to write the result.
idx	idx bytes of size_t
maxlen	Maximum number of characters to write.
negative	boolean type
base	an unsigned long data type
prec	an unsigned integral data type
width	an unsigned integral data type
flags	an unsigned integral data type

Returns: non integer value if success else error occur

◆ _is_digit()

static bool _is_digit ( char ch )

inlinestatic

_is_digit() - Is for the internal test if char is a digit from 0 to 9

Parameters

ch	This is the character to be checked.

Returns: true if char is a digit and internal test if char is a digit from 0 to 9

◆ _ntoa_format()

static size_t _ntoa_format	(	out_fct_type	out,
		char *	buffer,
		size_t	idx,
		size_t	maxlen,
		char *	buf,
		size_t	len,
		bool	negative,
		unsigned int	base,
		unsigned int	prec,
		unsigned int	width,
		unsigned int	flags
	)

static

_ntoa_format() - Converts the string into the defined format structure.

This function uses the while condition for padding the leading zeroes and also applies the if conditions to handle the hash. Using the if condtion pad spaces up to given width what specifies in that. It reverse the string and again append pad spaces up to given width.

Parameters

out	type of out_fct_type
buffer	Pointer to a character string to write the result.
idx	idx bytes of size_t
maxlen	Maximum number of characters to write.
negative	boolean type
base	an unsigned long data type
prec	an unsigned integer data type
width	an unsigned integer data type
flags	an unsigned integer data type

Returns: idx non integer value if success else error occur.

◆ _ntoa_long()

static size_t _ntoa_long	(	out_fct_type	out,
		char *	buffer,
		size_t	idx,
		size_t	maxlen,
		unsigned long	value,
		bool	negative,
		unsigned long	base,
		unsigned int	prec,
		unsigned int	width,
		unsigned int	flags
	)

static

_ntoa_long() - Converts string into long value.

This function begins with an if condition value then it assigns ~FLAGS_HASH into flags & value. Later it uses the if condition and do while write if precision not equal to zero and value is not equals to zero.

Parameters

out	type of out_fct_type
buffer	Pointer to a character string to write the result.
id	idx bytes of size_t
maxlen	Maximum number of characters to write.
negative	boolean type
base	an unsigned long data type
prec	an unsigned integral data type
width	an unsigned integral data type
flags	an unsigned integral data type

Returns: idx non integer value if success else error occur.

◆ _ntoa_long_long()

static size_t _ntoa_long_long	(	out_fct_type	out,
		char *	buffer,
		size_t	idx,
		size_t	maxlen,
		unsigned long long	value,
		bool	negative,
		unsigned long long	base,
		unsigned int	prec,
		unsigned int	width,
		unsigned int	flags
	)

static

_ntoa_long_long() - Function to convert string to long value.

This function begins with an if condition then it assigns ~FLAGS_HASH into flags & value. Later it uses the if condition and do while write if precision not equal to zero and value is not equals to zero.

Parameters

out	type of out_fct_type
buffer	Pointer to a character string to write the result.
idx	idx bytes of size_t
maxlen	Maximum number of characters to write.
negative	boolean type
base	an unsigned long data type
prec	an unsigned integral data type
width	an unsigned integral data type
flag	an unsigned integral data type

Returns: idx non integer value if success else error occur.

◆ _out_buffer()

static void _out_buffer	(	char	character,
		void *	buffer,
		size_t	idx,
		size_t	maxlen
	)

inlinestatic

_out_buffer() - Internal buffer output

This function compares the idx and maxlen, If "idx" is less than "maxlen" then it will assign "character" value into the typecasting char "buffer[idx]"

Parameters

character	character type string
buffer	Pointer to a character string to write the result.
idx	bytes of size_t
maxlen	Maximum number of characters to write.

◆ _out_char()

static void _out_char	(	char	character,
		void *	buffer,
		size_t	idx,
		size_t	maxlen
	)

inlinestatic

_out_char() - Internal putchar wrapper

The typecasting of arguments with void is to avoid unused variable warnings in some compilers. Checks the character value once the if condtion is success then putchar() writes a character into stdout.

Parameters

character	character type string
buffer	Pointer to a character string to write the result.
idx	bytes of size_t
maxlen	Maximum number of characters to write.

◆ _out_fct()

static void _out_fct	(	char	character,
		void *	buffer,
		size_t	idx,
		size_t	maxlen
	)

inlinestatic

_out_fct() - Internal output function wrapper

This function typecasting idx and maxlen arguments is to avoid compiler error. And then output function wrapper and the buffer is the output fct pointer.

Parameters

character	character type string
buffer	Pointer to a character string to write the result.
idx	bytes of size_t
maxlen	Maximum number of characters to write.

◆ _out_null()

static void _out_null	(	char	character,
		void *	buffer,
		size_t	idx,
		size_t	maxlen
	)

inlinestatic

_out_null() - Internal null output.

The typecasting of arguments with void is applied to avoid unused variable warnings in some compilers.

Parameters

character	character type string
buffer	Pointer to a character string to write the result.
idx	bytes of size_t
maxlen	Maximum number of characters to write.

◆ _strlen()

static unsigned int _strlen ( const char * str )

inlinestatic

_strlen() - calculates the length of the string.

Parameters

str	str is an argument of type pointer.

Returns: string length if successfully executed,else error occured.

◆ _vsnprintf()

static int _vsnprintf	(	out_fct_type	out,
		char *	buffer,
		const size_t	maxlen,
		const char *	format,
		va_list	va
	)

static

_vsnprintf() - Function writes formatted output to a character array, up to a maximum number of characters.

The _vsnprintf fucntion firstly initializes the varibles of format specifers like flags, width, precsion in this they evaluate all the specifiers invidually.First it checks the buffer equal to zero or not for null output function. After that flags evaluation will start using the switch case, then width field evalucation take process using if condition.

Parameters

out	type of out_fct_type.
buffer	pointer to the buffer where you want to function to store the formatted string.
maxlen	maximum number of characters to store in the buffer.
format	string that specifies the format of the output.
va	variable-argument list of the additional argument.

Returns: Its return the typecasted int of idx if success otherwise error occured.

◆ fctprintf()

int fctprintf	(	void()(char character, void arg)	out,
		void *	arg,
		const char *	format,
			...
	)

fctprintf() - Function is using the libary macros of variable aruguments like vastart and vaend.

This function initializes the va_list variable and invokes the va_start(). Invokes _vsnprintf function and stores the value into ret. It applies the functions va_start and va_end on va and returns ret.

Parameters

out	An output function which takes one character and an argument pointer.
arg	An argument pointer for user data passed to output function.
format	A string that specifies the format of the output.

Returns: The number of characters that are sent to the output function, not counting the terminating null character.

◆ putchar()

int putchar ( char ch )

◆ snprintf()

int snprintf	(	char *	buffer,
		size_t	count,
		const char *	format,
			...
	)

snprintf() - Places the generated output into the character array pointed to by buf, instead of writing it to a file

This function initializes the va_list variable and invokes the va_start(). Invokes _vsnprintf function and stores the value into ret. It applies the functions va_start and va_end on va and returns ret.

Parameters

buffer	pointer to buffer where you want to function to store the formatted string.
count	maximum number of characters to store in the buffer.
format	string that specifies the format of the output.

Returns: ret returns the ret value as an integer type.

◆ sprintf()

int sprintf	(	char *	buffer,
		const char *	format,
			...
	)

sprintf() - Sends formatted output to a string pointed to by the argument buffer.

This function initialize the va_list variable and invokes the va_start(). Invokes _vsnprintf function and store the value into ret. It applies the functions va_start and va_end on va and returns ret.

Parameters

buffer	pointer to an array of char elements resulting string will store.
format	string that contains the text to be written to buffer.

Returns: ret It returns the ret value as an integer type.

◆ vsnprintf()

int vsnprintf	(	char *	buffer,
		size_t	count,
		const char *	format,
		va_list	va
	)

vsnprintf() - Invokes another function called _vsnprintf(). with some arguments.

Parameters

buffer	Pointer to the buffer where you want to function to store the formatted string.
count	maximum number of characters to store in the buffer.
format	string that specifies the format of the output.

Returns: Its return the typecasted int of idx if success otherwise error occured.

Classes

Macros

Typedefs

Functions

Macro Definition Documentation

◆ _putchar

◆ FLAGS_CHAR

◆ FLAGS_HASH

◆ FLAGS_LEFT

◆ FLAGS_LONG

◆ FLAGS_LONG_LONG

◆ FLAGS_PLUS

◆ FLAGS_PRECISION

◆ FLAGS_SHORT

◆ FLAGS_SPACE

◆ FLAGS_UPPERCASE

◆ FLAGS_ZEROPAD

◆ PRINTF_FTOA_BUFFER_SIZE

◆ PRINTF_NTOA_BUFFER_SIZE

◆ PRINTF_SUPPORT_FLOAT

◆ PRINTF_SUPPORT_LONG_LONG

◆ PRINTF_SUPPORT_PTRDIFF_T

Typedef Documentation

◆ out_fct_type

Function Documentation

◆ _atoi()

◆ _ftoa()

◆ _is_digit()

◆ _ntoa_format()

◆ _ntoa_long()

◆ _ntoa_long_long()

◆ _out_buffer()

◆ _out_char()

◆ _out_fct()

◆ _out_null()

◆ _strlen()

◆ _vsnprintf()

◆ fctprintf()

◆ putchar()

◆ snprintf()

◆ sprintf()

◆ vsnprintf()
